Home Machines Bottom Sealing Bottom Sealing ( < 100 Microns) SDH-406

Machines

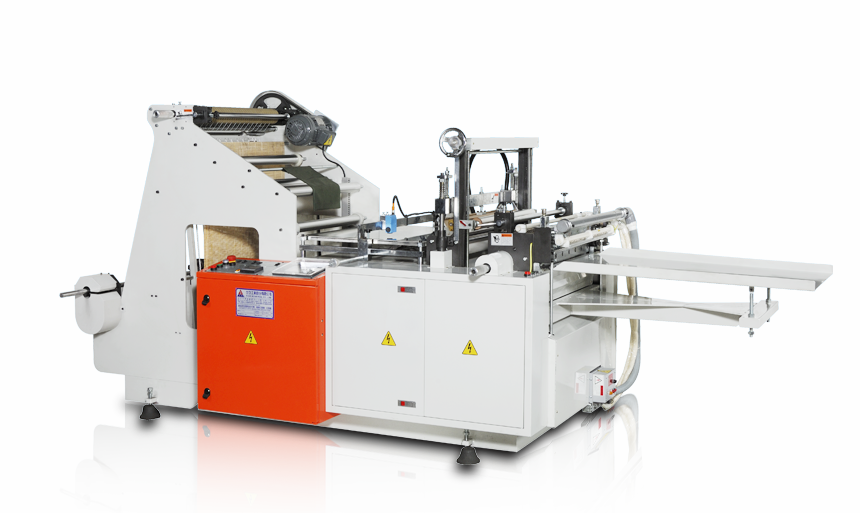

Bottom Sealing Bottom Sealing ( < 100 Microns) SDH-406

Inquiry
Feature Specifications Video Download PDF
  • Outstanding qualities
    • - Poly sealing knives make the sealed foundation of the bags firm and pretty.
    • - Manufactures thick poly-bags.
    • - Two lines sorting and auto feeding.

    Available products
    • - Countless uses for thick poly bags, packaging salt, material, rice, jujubes, guavas, pebbles, sugar, screws, pesticides, refrigerated items etc.

    Optional equipment
    • - 45° seal for standing bag.
    • - Free tension device for strong seal.

    Suitalble materials
    • - LDPE, HDPE.
  • Model SDH-406
    Cutter "W" 40"
    Cutting "L" 6"-60"
    pc/min 25-100
    Converting Thickness 0.015-0.10m/m
    Machine Dimension (LxWxH) 2.95 x 1.65 x 1.7 m
    Machine Weight 1350 kg
    Motor 2HP
    Heater 1.8KW
    Power Required 4.5KW
    Machine Packing (LxWxH) 3.2 x 2.0 x 1.8 m
    Gross Weight 1550 kg


    *Specifications are subject to change without notice.
    *For machines with servo system, the model number will contain “NC”.
