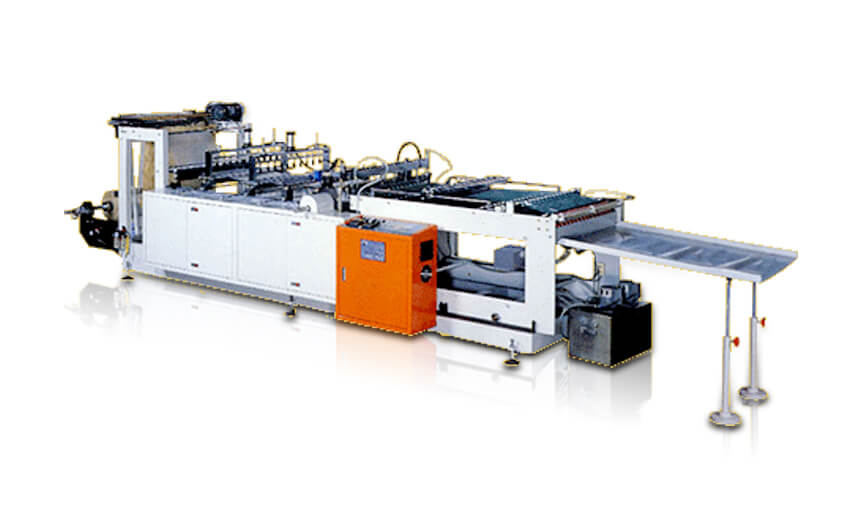

Bottom Sealing and Cutting Machine Heavy Duty Bags ( > 100 Microns) SDH-263Q

Inquiry
  • S-DAI is a global bottom sealing and cutting machine manufacturer in Taiwan, mainly providing customized plastic bottom sealing cutting machine to Eastern Europe, America, Asia and Africa, such as Russia, Ukraine, Poland, Hungary, Canada, Mexico, Argentina, Thailand, Indonesia, Vietnam and Kenya at a reasonable price.
Feature Specifications Download PDF
  • Outstanding qualities
    • - Poly sealing knives make the sealed foundation of the bags firm and pretty.
    • - This SDH-263Q bottom sealing and cutting machine could manufacture thick poly-bags.
    • - Two lines sorting and auto feeding.

    Available products
    • - Countless uses for thick poly bags, packaging salt, material, rice, jujubes, guavas, pebbles, sugar, screws, pesticides, refrigerated items etc.

    Optional equipment
    • - 45° seal for standing bags.
    • - Free tension device for strong seals.

    Suitalble materials
  • Model SDH-263Q
    Cutter Width 26"
    Cutting Length 3-30"
    pc/min 20-70
    Converting Thickness 0.08-0.40m/m
    Machine Dimension (LxWxH) 4.5 x 1.2 x 1.5 m
    Machine Weight 1700kg
    Motor 2HP
    Heater 1.5kW
    Power Required 8kW
    Machine Packing (LxWxH) 4.8 x 1.4 x 1.6 m
    Gross Weight 1900kg


    *Specifications are subject to change without notice.
    *For machines with servo system, the model number will contain “NC”.
