5 Drive System Applications in Side Sealing Bag Making Machines

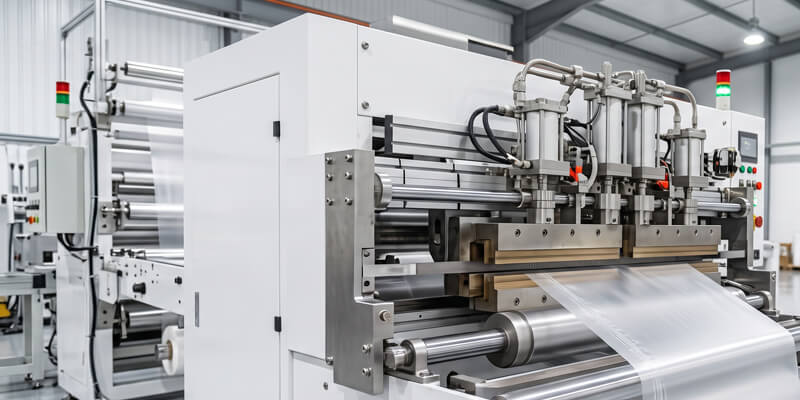

Operational Dynamics and Mechatronic Evolution in Flexible Packaging Converting

As a technical columnist observing the global evolution of converting machinery, I have witnessed a profound architectural transformation over the past two decades. In high-efficiency packaging converting, the modern plastic side sealing bag making machine serves as a vital component in turning extruded film roll stock into precisely dimensioned, hermetically sealed flexible packaging. Historically, early machinery relied upon mechanical master shafts, intermittent mechanical cams, and pneumatic indexing devices to drive web transport and sealing jaw movement. While these legacy mechanical systems provided robust operation under low-speed conditions, they imposed severe physical boundaries on acceleration profile tuning, registration accuracy, and thermal dwell consistency. The introduction of direct-drive brushless AC servo motors, coupled with high-speed fieldbus communications and digital motion control, revolutionized the modern plastic bag production machine. Servo technology replaced mechanical linkages with software-defined electronic camming, allowing independent velocity, torque, and position control for every critical motion axis on the line.

Evaluating this mechatronic advancement requires an objective engineering analysis of the balance between operational capabilities and system complexities. Incorporating a high-precision multi-axis motion control network into a side seal bag making machine yields undeniable operational advantages. The primary technical benefit lies in the decoupling of web feeding from mechanical sealing jaw cycles. Servo motors can execute complex micro-indexing sequences, accelerating film webs to maximum linear velocity, holding precise position during thermal contact, and decelerating smoothly without introducing material stretch or distortion. Furthermore, closed-loop optical feedback systems continuously monitor print registration marks, instantly correcting web positioning within sub-millimeter tolerances on a cycle-by-cycle basis. This dynamic accuracy directly enhances overall production capacity and operational speed, enabling continuous output rates that were physically unattainable with mechanical drive trains. For plant operators, the ability to store multi-recipe parameters digitally means that product changeovers require no manual gear swaps or mechanical stroke adjustments, dramatically reducing downtime and material waste in any modern plastic bag manufacturing machine.

However, integrating servo drive systems into a high-speed plastic bag making machine also presents distinct technical challenges and practical disadvantages that engineering management must account for. The initial financial investment for a multi-axis servo system is considerably higher than that of traditional mechanical drive trains due to the requirement for premium servo amplifiers, absolute encoders, precision planetary reduction gears, and sophisticated programmable automation controllers. Moreover, system reliability becomes intricately linked to electrical infrastructure quality. High-frequency electrical noise, voltage fluctuations, and thermal stress within electrical control cabinets can trigger encoder communication faults or drive over-current trips, halting production. Maintenance paradigms must also shift from traditional mechanical millwright procedures to advanced software diagnostic methodologies, requiring plant technicians to analyze real-time oscilloscope traces, fieldbus packet timing, and PID loop tuning parameters. Therefore, while servo motor drive systems provide superior speed, capacity, and precision, their optimal execution demands a dedicated commitment to advanced electrical design, robust thermal control, and specialized technical expertise.

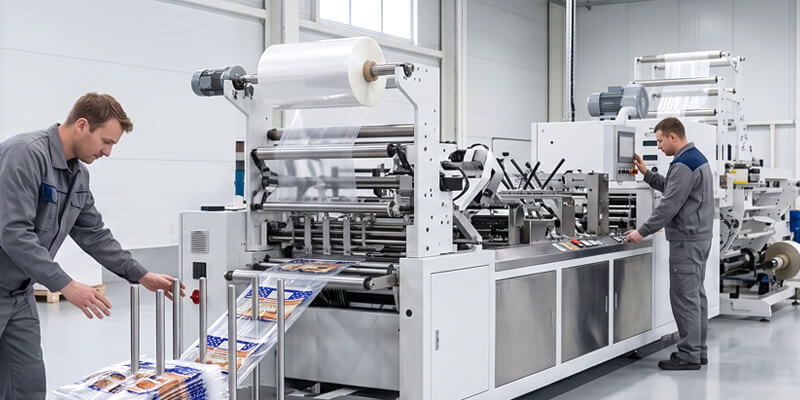

High-Precision Motion Topologies: 5 Application Machine Models of the Drive System in Side Sealing Bag Making Machines

In the contemporary flexible packaging manufacturing landscape, the relationship between precision motion drive systems and side sealing converting equipment represents a fundamental engineering dependency that prospective machine purchasers must thoroughly analyze before issuing capital equipment specifications. A side sealing bag making machine relies on an intricate synchronization of web tensioning, print registration tracking, thermal contact timing, and mechanical cutting jaw movements. When processing ultra-thin polyolefin films or multi-layer co-extruded polymers, even minor velocity ripples or micro-stoppages in the drive shaft can cause substrate thermal burn-through, structural seal weakening, or severe misalignment of side seal edges. Modern motion drive systems utilize high-resolution optical or capacitive feedback encoders capable of resolving millions of pulses per revolution, feeding closed-loop control algorithms running at kilohertz sample frequencies. This precise real-time synchronization ensures that the dynamic acceleration curves of the web-feed rollers perfectly mirror the sinusoidal trajectory of the sealing knife assembly. Purchasers who evaluate equipment purely on baseline mechanical build quality while ignoring the electrical drive architecture run the risk of procuring lines prone to premature seal failures, excessive waste during acceleration phases, and chronic registration drift under varying factory ambient temperatures. Therefore, gaining a clear insight into how dedicated drive configurations are engineered for specific bag geometries is an essential prerequisite for optimizing capital efficiency and maximizing operational yield:

1. Wicket Bag Making Machine

The wicket bag making machine represents a peak benchmark in ultra-high-speed automated stacking and precision dynamic registration.

The engineering integration of a multi-axis servo drive system is the foundational core that dictates the performance of a high-speed wicket bag making machine. In this specialized machinery configuration, plastic films must be indexed, side-sealed, perforated, and mechanically transferred onto metal wicket wires at production speeds often exceeding three hundred cycles per minute. Achieving this level of throughput requires extraordinary dynamic response from the drive motors controlling the main indexing rollers and the high-speed rotative transfer arm. A single primary drive shaft cannot handle the rapidly shifting inertia required to pick up individual bags and stack them cleanly without collapsing the flexible substrate. By installing dedicated servo drives equipped with direct-drive direct-current or brushless AC technology, engineers can program custom S-curve acceleration profiles that prevent thin high-density polyethylene films from fluttering or losing tension. Furthermore, the electronic camming functionality within the servo controller synchronizes the side-sealing beam's vertical stroke with the vacuum collection arms, guaranteeing that every seal is made with uniform dwell time and precise force application. In high-volume production facilities, operating multiple wicket bag making machines demonstrates that precise servo torque feedback prevents mechanical jam-ups on the wicket pins, minimizing line stoppages and ensuring pristine bag edge alignment for automated bakery packaging equipment.

2. Courier Bag Making Machine

The courier bag making machine integrates multi-layer substrate feeding, inline hot-melt adhesive application, and heavy-duty sealing dynamics required for secure logistical packaging.

Designing a robust courier bag making machine presents unique mechanical and thermal challenges due to the heavy multi-layer co-extruded films, integrated double-sided adhesive tapes, and thick bottom gussets required for e-commerce shipping applications. The servo motor drive system plays a pivotal role in maintaining constant linear tension while accommodating the sudden step-changes in material mass caused by hot-melt adhesive patch application and release liner insertion. Unlike lightweight film converting, driving a heavy-duty packaging line requires high-torque servo motors coupled to zero-backlash planetary reduction gearboxes. The drive system must deliver high peak torque during instantaneous web indexing while maintaining absolute speed stability during continuous thermal sealing of the side seams. Servo-driven secondary feeding stations ensure that protective release liners and return-tape strips are continuously aligned with sub-millimeter precision relative to the leading edge of the bag. When running commercial production across automated courier bag making machines, precise drive synchronization prevents film tracking errors that would otherwise lead to puckering around the seal zone, ensuring that the final e-commerce mailers meet rigorous burst-strength and tamper-evident security standards required by international logistics carriers.

3. Zipper Bag Making Machine

The zipper bag making machine requires precise thermal dwell control and exact continuous-to-intermittent motion synchronization to integrate pre-applied zipper profiles without substrate distortion.

The continuous processing of reclosable profiles makes the zipper bag making machine one of the most mechatronically complex configurations in the flexible packaging industry. Integrating a rigid male-female polypropylene zipper profile onto a flexible film substrate requires managing localized heat capacities and non-uniform material thickness across the seal zone. The servo motor drive system provides the critical motion control needed to coordinate the main web feed with specialized zipper sealing and crushing jaws. A main servo axis indexes the film web with high positional accuracy, while secondary servo axes manage the pressure and dwell duration of ultrasonic or thermal zipper crushers that flatten the zipper profile at the side-seal intersection. Without high-precision servo control, the additional material thickness of the zipper profile would lead to uneven cooling, structural stress concentrations, and severe seal leakage. In high-throughput industrial plants, multi-axis zipper bag making machines utilize electronic axis coupling to adjust feed speeds dynamically based on real-time tension sensors, neutralizing substrate distortion and ensuring that the zipper profiles align perfectly without binding or popping open during high-speed side sealing operations.

4. Carry Bag Making Machine

The carry bag making machine demands versatile motion synchronization for handle punching, loop handle feeding, and multi-lane sealing operations.

In retail packaging manufacturing, the carry bag making machine must process a wide range of handle configurations, including punch-out patch handles, soft-loop handles, and die-cut wave tops, while maintaining continuous side-sealing speeds. A multi-axis servo motor drive system serves as the central control mechanism that coordinates the complex sequence of web indexing, handle attachment, inline punching, and final side-cutting. Servo motors dedicated to the soft-loop handle feeding unit unroll, cut, fold, and position the handle film strips onto the main web with absolute spatial repeatability. The dynamic responsiveness of the servo drive allows the machine to perform complex start-stop motion cycles without transmitting physical shocks back through the main unwind stand. When operating commercial carry bag making machines, central programmable controllers utilize closed-loop encoder feedback to adjust sealing knife dwell times dynamically relative to line speed, ensuring consistent weld strength across varying film gauges. This precise control over velocity and position allows manufacturers to achieve exceptional dimensional accuracy and structural integrity on heavy-duty retail shoppers and promotional bags.

5. Flower Sleeve Bag Making Machine

The flower sleeve bag making machine relies on specialized angular cross-sealing geometry and complex trapezoidal web tension control to process asymmetrical conical film structures.

The production of conical or trapezoidal packaging sleeves requires a highly specialized flower sleeve bag making machine capable of executing angled side seals on delicate cast polypropylene (CPP) or oriented polypropylene (BOPP) films. Because the bag geometry is asymmetrical, traditional straight-line mechanical indexing mechanisms are incapable of handling the complex web paths and varying cross-sectional tension. A multi-axis servo motor drive system is essential for controlling both the angled seal beam assembly and the differential draw rollers. By utilizing specialized electronic cam profiles, the servo system drives the sealing knife along a mathematically defined angular trajectory while simultaneously adjusting web tension to prevent film wrinkling along the sloped edges. Furthermore, servo-driven rotary trim knives continuously remove edge scrap material in perfect synchronization with the sealing stroke. Deploying advanced flower sleeve bag making machines in commercial packaging operations allows converters to maintain high thermal seal clarity and clean geometric cuts at elevated speeds, ensuring that fragile horticultural displays receive crystal-clear, dimensionally uniform protective packaging.

Conclusion: Strategic Evaluation of Drive System Integration in Side Sealing Bag Making Machines

Synthesis of Motion Drive Applications Across Side Sealing Bag Manufacturing Architectures

In summary, evaluating the "5 Application Machine Models of the Drive System in Side Sealing Bag Making Machines" demonstrates how motion control architecture has transformed modern flexible packaging converting. Whether deployed on a high-speed wicket line, a heavy-duty e-commerce courier unit, a complex reclosable zipper system, a versatile retail carry bag machine, or an angled flower sleeve converting station, the multi-axis servo drive system acts as the core engine powering productivity, quality, and structural sealing integrity. The transition from mechanical drive shafts to digital closed-loop mechatronic networks enables converters to achieve unmatched operational flexibility, rapid recipe changeovers, and drastic reductions in raw material waste. As global packaging demands shift toward thinner, recyclable, and bio-based polymer substrates, the ability of a modern side sealing bag making machine to dynamically regulate seal dwell timing, dynamic tension profiles, and thermal energy input becomes ever more vital. Investing in advanced motion control is no longer merely an option for increasing speed; it is an essential engineering strategy for maintaining profitability and quality standards in the international plastic bag making machine market when selecting a high-performance side seal bag making machine.

Technical Audit Protocols for Machine Purchasers Confirming Drive Performance with Manufacturers

When machine purchasers initiate technical discussions with a plastic side sealing bag making machine manufacturer, verifying drive system performance requires a rigorous, data-driven engineering evaluation rather than relying solely on marketing specifications. Purchasers must systematically inspect key mechatronic parameters to ensure the proposed machine architecture matches their long-term operational requirements. The following critical evaluation areas must be addressed directly during pre-procurement technical reviews.

Quantitative Evaluation of Servo Response Time and Bus Communication Latency

Purchasers must require the manufacturer to provide explicit specifications regarding the industrial fieldbus protocol and drive response cycles. The motion controller must communicate with servo drives over high-speed real-time Ethernet buses such as EtherCAT, SERCOS III, or PROFINET IRT, with cycle times maintained at or below one millisecond. High communication bandwidth ensures that registration mark corrections and dynamic tension adjustments occur instantly within a single operating cycle, eliminating registration drift during acceleration or deceleration phases.

Thermal Dissipation Capacity and Enclosure Protection Ratings Under Continuous Load

The long-term reliability of servo amplifiers and digital motion controllers depends heavily on the thermal management design inside the electrical cabinet. Purchasers should inspect the electrical enclosure's cooling mechanisms, verifying the inclusion of closed-circuit air conditioners or industrial heat exchangers rated for high ambient factory temperatures. Additionally, all electrical control cabinets should meet IP54 or NEMA 12 protection standards to prevent conductive plastic dust, ambient humidity, and thermal contaminants from degrading sensitive electronic components.

Software Openness, Diagnostic Capabilities, and Long-Term Component Availability

Purchasers should thoroughly audit the motion control software platform and component sourcing strategy of the machine builder. Preference should be given to manufacturers utilizing non-proprietary, open IEC 61131-3 programming standards and standard commercial off-the-shelf servo components from leading global automation suppliers. This ensures that in-house maintenance personnel can access raw diagnostic data, review real-time drive alarm logs, and source replacement amplifiers or encoders locally without being tied to proprietary, single-source hardware vendors.

Review: Core Insights on Drive System Integration in Side Sealing Bag Making Machines

Key Operational Summaries for Converting Equipment Buyers: To assist converting executives, factory managers, and machinery purchasers in reviewing the technical concepts detailed in the core section of this analysis, the following review synthesizes the strategic motion control functions across the five specialized side sealing application models. Understanding these mechatronic distinctions empowers procurement teams to select the exact drive system specifications tailored to their specific flexible packaging product portfolio.

• Wicket Bag Making Machine:
  Utilizes high-speed servo-driven indexing rollers and dynamic rotative transfer arms to execute precise micro-indexing and rapid bag collection onto metal wicket pins at speeds exceeding three hundred cycles per minute without substrate deformation.
• Courier Bag Making Machine:
  Employs high-torque servo motors paired with zero-backlash planetary reduction gearboxes to manage heavy multi-layer films, maintain web tension through inline hot-melt adhesive applications, and deliver uniform seal integrity on secure shipping mailers.
• Zipper Bag Making Machine:
  Relies on synchronized multi-axis servo control to integrate continuous zipper profiles with intermittent side-sealing motion, utilizing dedicated crushing jaws and precise thermal dwell timing to prevent seal leakage and material distortion.
• Carry Bag Making Machine:
  Integrates independent servo drives across handle feeding, patch application, and dynamic die-punching stations to maintain perfect spatial registration and robust cross-seal strength across diverse retail bag designs.
• Flower Sleeve Bag Making Machine:
  Leverages complex electronic camming profiles to execute synchronized angular cross-sealing and trapezoidal web tension control, enabling clean geometric trimming and clear thermal welds on asymmetrical CPP and BOPP film sleeves.

In final summary for machinery purchasers, evaluating drive system technology must extend beyond assessing maximum rated mechanical linear speeds. True operational efficiency stems from how effectively a motion control system maintains closed-loop accuracy, manages web tension under variable thermal conditions, and minimizes scrap material during machine startup and shutdown cycles. By specifying open-architecture multi-axis servo systems with real-time fieldbus networking, high-resolution encoder feedback, and comprehensive thermal management, converting operations ensure maximum equipment uptime, superior product quality, and long-term adaptation to evolving market demands.
