Dimensional Capacity in 5 Plastic Bag Production Machine

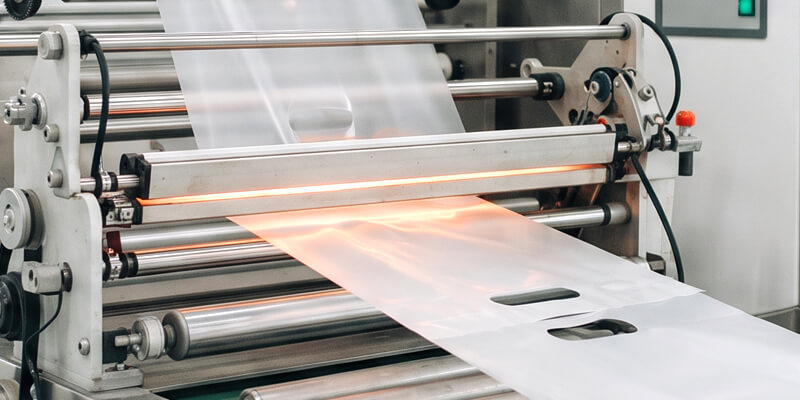

Plastic bag production machines in certain application areas have strict requirements for the size and thickness of the finished product

As an international engineering columnist evaluating modern flexible packaging equipment, I frequently observe that conversion efficiency is inseparable from strict dimensional control. When an enterprise integrates a plastic bag production machine into an automated, high-speed converting line, the mechanical and operational tolerances of that equipment directly establish the boundary between profitable throughput and excessive raw material scrap. Over my past two decades of evaluating web-fed equipment, servo-driven indexing systems, dynamic tension controllers, and thermal sealing assemblies, I have witnessed a fundamental shift in how international converters evaluate capital equipment. Dimensional capacity—encompassing precise linear length control, lay-flat width consistency, gusset symmetry, seal bar parallelism, and film thickness gauge uniformity—is no longer regarded as a secondary parameter on an operator panel. Instead, it serves as the foundational engineering metric that defines modern industrial productivity.

In automated packaging and retail distribution, even a minor variance in length, gusset depth, or film thickness can cause catastrophic operational failures during downstream handling, automated filling, high-speed printing, or robotic palletizing. Selecting an advanced plastic bag manufacturing machine requires a deep appreciation for the complex physical dynamics of flexible polymers under mechanical, thermal, and pneumatic stress. Substrates such as high-density polyethylene, low-density polyethylene, linear low-density polyethylene, polypropylene, and multi-layer co-extruded films exhibit viscoelastic stretch and elastic recovery during unwinding, traction, sealing, and cutting cycles. Consequently, an optimized plastic bag making machine must maintain absolute dynamic synchronization among its draw rollers, optical print registration sensors, flying cut-off knives, and pneumatic seal bars. My technical field audits demonstrate that manufacturing operations failing to prioritize dimensional capacity face heightened reject rates, erratic seal integrity, and severe material waste during continuous production runs.

Engineering precision in machinery design directly dictates how effectively a flexible packaging apparatus manages dynamic film distortion. When a continuous film web passes through a high-speed indexing mechanism, friction coefficients, seal jaw thermal expansion, dancer arm response latency, and servomotor acceleration profiles interact constantly. If the structural chassis exhibits micro-flexure or if the traction rollers suffer from radial runout, the machine introduces cumulative dimensional errors across thousands of cycles. For high-volume conversion operations, a linear deviation of merely one millimeter per unit translates into tons of wasted polymer resin over a year, along with downstream jam-ups in high-speed packaging equipment. Understanding these mechanical relationships allows procurement specialists and plant operations managers to look beyond simple cycles-per-minute claims and rigorously evaluate the chassis rigidity, motion control architecture, sensor feedback response, and thermal stabilization systems that define true dimensional capability.

Precision Dimensional Capacity Defines the Mechanical Integrity and Converting Standards of Modern Flexible Packaging Equipment

Before evaluating specific machinery classifications, I must emphasize why precision dimensional capacity serves as the primary benchmark for industrial converting performance. In flexible packaging manufacturing, dimensional capacity represents a machine's mechanical, thermal, and electronic ability to produce bags with consistent linear dimensions, volumetric capacities, wall thicknesses, and structural geometry under continuous high-speed operation. When a plant manager evaluates a conversion line, the machinery must counteract the natural elasticity of polyolefin and compostable webs. As plastic film passes through unwind stands, dancer arms, edge-guide systems, print registration sensors, and heat-sealing stations, tension spikes and thermal exposure induce stretch and shrinkage. A converter operating without precise servo control or rigid mechanical frame alignment will inevitably experience drift in cut length, asymmetrical gusseting, and erratic seal positioning. Machinery purchasers must thoroughly research this relationship because dimensional instability directly impairs downstream secondary processes—such as automated carton loading, wicketed bagging, and retail overwrapping—while dramatically driving up resin consumption through over-gauge compensation:

1. Carry Bag Making Machine

Mastering High-Speed Punch Registration and Handle Hole Geometry Under Continuous Web Strain.

A carry bag making machine demands exceptional dimensional capacity to guarantee that punch geometry, seal positioning, and handle placement align perfectly during rapid indexing cycles. During continuous high-speed operation, these carry bag making machines process tubular or side-gusseted films through reciprocating die-cut punching stations, where any fluctuation in web tension creates severe misregistration between the handle cutout and the top seal margin. From a design and manufacturing perspective, dimensional capacity is paramount because inconsistent length indexing alters the distance between the upper bag lip and the handle die, creating localized stress points that cause premature tearing when end-users carry heavy retail goods. To prevent these mechanical failures, the machine chassis must be constructed with high-rigidity structural steel, and the traction drive must utilize high-resolution brushless AC servomotors capable of micro-pitch positioning. Furthermore, mechanical punch anvils and thermal sealing bars must maintain exact parallelism across varying thermal operating zones. This design precision eliminates asymmetrical film stretching, ensures structural symmetry, and guarantees that every finished unit meets strict volumetric and load-bearing specifications.

2. Vegetable bag making machine

Maintaining Precise Gauge Uniformity, Perforation Spacing, and Breathability Dimensions.

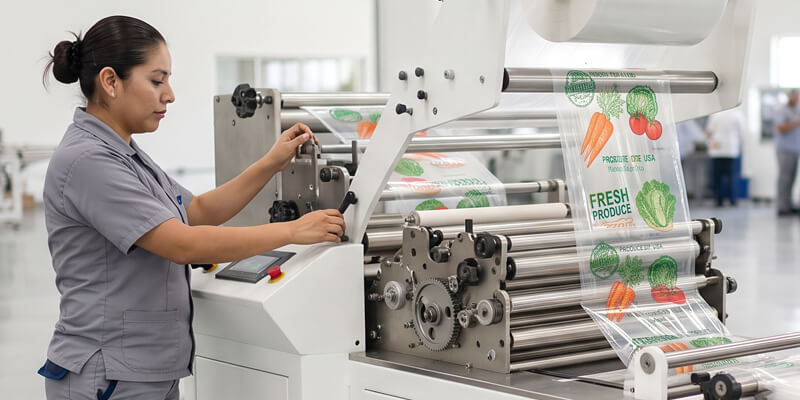

A vegetable bag making machine requires stringent dimensional capacity control to ensure consistent produce ventilation, wall thickness, and precise tear-off perforation pitch across delicate thin-gauge films. In agricultural packaging, these vegetable bag making machines process high-density polyethylene or ultra-thin breathable substrates designed for automated food packing lines. Dimensional capacity in this equipment is critical because produce packaging relies on exact volumetric sizing and uniform micro-perforation placement to maintain humidity regulation and prevent early crop spoilage. If a machine exhibits friction variability in its nip rollers or thermal expansion in its seal jaws, the resulting variation in bag length and film gauge prevents automated produce filling machines from opening and loading the bags efficiently. Equipment manufacturers must incorporate low-friction air bearings, dynamic tension dancer systems, and laser-guided micro-perforation units synchronized with servo indexing. By mastering dimensional control in both machine construction and software algorithms, converters can produce high-clarity, ultra-thin produce bags that withstand continuous dynamic tension while maintaining exact dimensional specifications.

3. Biodegradable Bag Making Machine

Mitigating Thermal Deformation and Shear Sensitivity in Bio-Polymer Conversion.

Operating a biodegradable bag making machine presents unique mechanical challenges because compostable resins like PBAT, PLA, and starch-based biopolymers exhibit extreme thermal sensitivity and low melt strength. Unlike standard polyolefins, biodegradable bag making machines process substrates that suffer from rapid viscoelastic creep and permanent elongation under slight tension spikes or elevated thermal exposure. Dimensional capacity is critical in the engineering of these machines because excessive tension or prolonged seal jaw dwell times cause local neck-in, severe wall thinning, and dimensional distortion along the bottom and side seals. Machine designers must incorporate specialized non-stick seal bar coatings, multi-zone PID temperature controls, and ultra-sensitive pneumatic dancer systems that operate under exceptionally low web tension. Achieving dimensional consistency on bio-resin conversion lines ensures that compostable bags maintain their specified volume and certified load capacity without suffering from premature structural failure or seal seam rupture.

4. Express Bag Making Machine

Integrating Multi-Layer Pocket Lamination and Adhesive Strip Alignment with High Precision.

An express bag making machine requires rigorous multi-axis positional accuracy to integrate co-extruded courier films, release liners, pressure-sensitive adhesive tapes, and tamper-evident pouch structures in a single high-speed converting pass. During continuous operations, express bag making machines execute folding, bottom gusseting, adhesive strip application, and transverse seal-cutting at high production speeds. In the design of courier bag equipment, dimensional capacity is the core factor determining whether the hot-melt adhesive strip aligns perfectly with the lip flange and tear-strip perforation. A linear tracking deviation of merely two millimeters causes exposed adhesive, crooked closure flaps, or misaligned pocket pouches, which disrupt automated sorting scanners at logistics hubs. Equipment builders must integrate rigid structural frames, dual web edge-position controllers, and independent auxiliary servo drives. This advanced mechanical synchronization prevents axial web weave, maintains strict geometric tolerances across all laminated layers, and guarantees flawless courier bag construction.

5. Shopping Bag Making Machine

Ensuring Structural Symmetry, Loop Handle Attachment, and Precise Gusset Depth.

A shopping bag making machine relies on absolute mechanical synchronization to handle complex three-dimensional gusset folding, top-rim folding, and loop handle attachment on heavy-duty retail packaging webs. High-capacity shopping bag making machines process multi-layer co-extruded films, attaching soft-loop or patch handles onto reinforced rims before forming perimeter seals and cutting individual units. Maintaining dimensional capacity is vital in shopping bag manufacturing because uneven side-gusset depth or misaligned handle placement causes structural asymmetry. Such defects prevent finished bags from sitting flat on checkout counters and create unbalanced stress concentration when filled with goods. Machine builders solve these challenges by installing precision mechanical gusseting fingers, ultrasonic or thermal handle-welding heads with micro-adjustable stroke controls, and optical registration sensors that correct for dynamic film stretch. This comprehensive engineering approach ensures perfect geometric symmetry, precise handle registration, and flawless visual presentation for high-end retail applications.

Conclusion: Engineering Considerations and Manufacturer Dialogues for Optimizing Machine Dimensional Capacity

Strategic Synthesis of Dimensional Engineering in Plastic Bag Production Equipment

The technical evaluation of flexible packaging conversion demonstrates that dimensional capacity is the defining parameter linking mechanical design to commercial profitability. A plastic bag production machine cannot be evaluated solely on maximum speed ratings or nominal output figures; rather, its true value lies in its ability to maintain microscopic dimensional repeatability across continuous operational cycles. Whether managing thin-gauge produce films or multi-layer express courier pouches, precision motion control, rigid frame architecture, and advanced thermal regulation dictate converting success. As film formulations evolve toward thinner gauges and complex compostable polymers, converter success will increasingly depend on machinery that actively manages web dynamics to deliver flawless dimensional accuracy.

Establishing Dynamic Draw Tolerances and Motion Architecture

When negotiating machinery acquisitions, procurement specialists must ensure that the equipment manufacturer explicitly defines dimensional tolerances under dynamic acceleration and deceleration, rather than static idle conditions. In a high-speed poly bag production machine, drive roller eccentricity, mechanical backlash, and servo update latencies directly influence cut-length consistency and seal positioning. Buyers should require the machine builder to provide documented engineering proofs demonstrating structural frame rigidity and dynamic roller balance.

Verifying Thermal Stability and Web Handling Responsiveness

Thermal management along sealing bars and micro-perforation assemblies represents another crucial area that buyers must thoroughly evaluate with equipment engineers. During extended production runs on a modern polythene bag production machine, heat transfer into mechanical jaws can induce thermal expansion, leading to uneven pressure distribution and dimensional drift across the web. Machinery purchasers should mandate full-factory acceptance testing using their specific film substrates to verify that heating zones and pneumatic dancer controllers maintain strict dimensional stability.

Validating Multi-Axis Synchronization and Quality Assurance Protocols

Ensuring long-term operational success requires buyers to audit the multi-axis motion control protocols and optical registration systems embedded in the converting line. Purchasers must confirm how the control system responds to web stretch variations and print misregistration in real time. Establishing clear acceptance benchmarks for length deviation, gusset alignment, and handle punch placement protects the capital investment and guarantees that the operational line meets all industrial standard requirements.

Review: Architectural and Dimensional Capacity Highlights of Modern Converting Machinery

The comprehensive technical analysis presented in the core section emphasizes that dimensional capacity is a multi-faceted mechanical requirement governed by servo-motion synchronization, thermal stability, tension control, and structural chassis rigidity. Machine buyers and packaging engineers must recognize that each specialized bag design presents distinct physical challenges to the converting line. The following structured review summarizes the essential dimensional capacity requirements across the five primary classifications of converting equipment analyzed in this article, highlighting the critical engineering parameters that dictate operational success:

• Carry Bag Making Machine:
  Prioritizes micrometric pitch control, rigid die-cut handle punch alignment, and dynamic web tension stabilization to prevent asymmetric stress points and handle tearing during high-speed indexing.
• Vegetable Bag Making Machine:
  Demands ultra-precise nip roller pressure, uniform thermal sealing control, and laser-synchronized perforation units to maintain exact volumetric sizing and prevent downstream automated packing jams.
• Biodegradable Bag Making Machine:
  Requires low-tension pneumatic dancer controls, narrow-window PID thermal sealing, and active stretch-prevention mechanisms to process heat-sensitive, low-melt-strength compostable resins without dimensional deformation.
• Express Bag Making Machine:
  Focuses on multi-axis servo synchronization, dual edge-guide tracking, and high-precision rotary tool alignment to ensure exact placement of hot-melt adhesive strips, lip folds, and tamper-evident features.
• Shopping Bag Making Machine:
  Emphasizes symmetrical side-gusset depth, precise mechanical handle-welding alignment, and dynamic optical registration to guarantee structural balance, upright stability, and accurate printed graphic alignment.

In conclusion, mastering dimensional capacity across these advanced converting platforms requires a holistic engineering approach that integrates heavy-duty structural design with cutting-edge motion control technologies. By understanding the specific mechanical demands of each bag style—from elastic bio-resins to complex multi-layer courier packaging—converters can make highly informed capital investment decisions. Prioritizing strict dimensional repeatability reduces material scrap, optimizes downstream packaging efficiency, and secures a lasting competitive advantage in the global flexible packaging marketplace.
