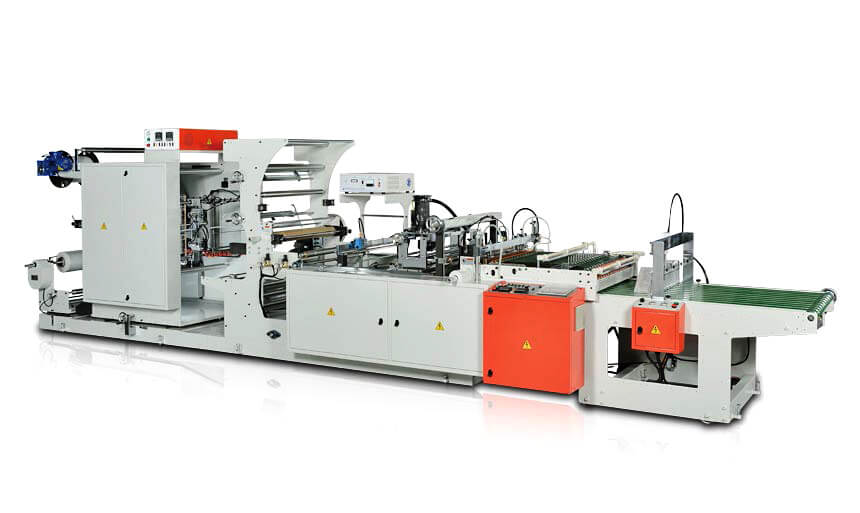

Side Sealing Machinery for Hanger Garment Bag SDH-263SH
- - Manufacturing plastic clear garment bag with hanger for apparel packaging.
- - Based on automatic side sealing and cutting machine model.
- - High precision cutting control provided by servo motor.
- - This plastic courier bag making machine have auto stop function if material runs out.
- - High accuracy of pivot points tracing provided by high precision photocell sensor.
- - Auto stop if printing mark out of position.
- - Imported high speed conveyor belt & electronic parts for long service life.
- - Convenient to change for various bag shapes.
- - Ruggedly constructed for maximum stability during high speed.
- - Zip profile by auto feeding.
- - Zip by continuous sealing system.
- - Customized into a bag on roll type bag making machine on plastic bag making for apparel packaging.
- - Round hole punching device.
- - Butterfly (Euro hole) puncher.
- - Auto-conveyor table.
- - Edge positioning controller (EPC).
- - Heating line device.
- - Vertical continuous sealing device.
- - Bag dividing device.
- - Glue applicator.
- - Glue skip.
- - Ultrasonic longitudinal sealing device.
- - In line folding device.
- - Auto Hanger insert device.
- - Other related equipment required for poly clear hanger bag machine.
Custom Manufacturing Plastic Bag for Apparel Packaging
S-DAI Industrial Company is a coutomized polythene bag making machine manufacturer and supplier in Taiwan, providing clear hanger bag machinery production line for apparel products packaging to many cities in Bangladesh, India and Sri Lanka at a fair price, such as Mumbai, Delhi, Kolkata, Bangalore, Gujarat, Dhaka, Chittagong, Khulna, Rajshahi, Sylhet, Barisal, Rangpur and Colombo. Each machine adopts the high precision cutting control system provided by servo motor, making the finished clear garment bag more stable in the each converting process, and you can also grasp the accurate information through the digital company panel of the bag making machinery.
Model SDH-263SH Available Material PP, OPP, CPP, LDPE, HDPE Width of Bag 50 - 600 mm Length of Bag Max.600 mm Speed pc minute
(Depends on material, bag type and size)
Max. 200 Thickness
(Depends on material type)
0.015~0.08 mm Heater 2 kW Motor 1.5 HP Power Required 5.5 kW Packing Dimensions
310 × 145 × 205 cm Weight N.W.: 1220 kg
G.W.: 1520 kg
*Specifications are subject to change without notice.
*The machine products with servo system the model number will with (NC). S-DAI is a poly garment bag machine manufacturer in Taiwan, mainly providing this customized clear hanger bag making machine for apparel and garment products packaging in garment industry to Bangladeshi, India, Vietnam, Turkey, Pakistan and Sri Lanka at a fair price.
