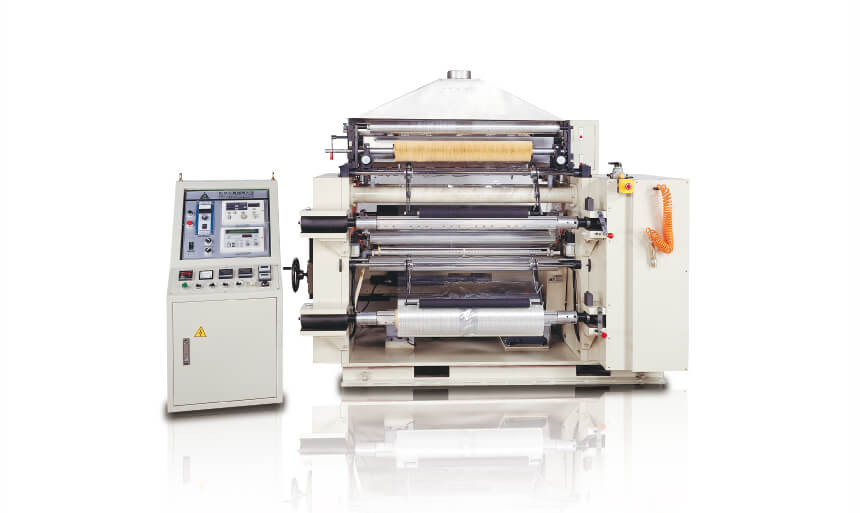

Micro Perforation Machine with flitter for Film SD-1200 SLP

Inquiry
  • S-Dai is a global micro perforation machine manufacturer, providing customized micro perforation machine with flitter for plastic film and related poly bag making machine for PP, CPP, BOPP, HDPE, LDPE film to Russia, Ukraine, Poland, Hungary, Romania, Spain, US, Mexico, Ecuado, Colombia, Argentina, Chile, Dominican Republic, Peru, Panama, Kenya, Nigeria at an affordable price.
  • Product features
    Slitting device features:
    • - Advanced slitter device for film with powerful 5HP AC motor drive for variable speeds.
    • - Smooth feeding provided by edge position controller (EPC) on the unwinder.
    • - Powder brake on unwinder ensures accurate tension control on applicable films.
    • - Powder clutch on rewinder ensures accurate tension control on applicable films.
    • - Micrometric offset automatic tension controller on the unwinder and rewinder.
    • - Equipped plastic stretch slitter device for film with counter.
    • - Convenient and fast product unloading provided by air shaft on the rewinder.
    • - Convenient and fast material loading provided by air operated shaftless unwinder.
    • - Waste material blower for efficient collection.
    • - Easy to operate, save manpower, and produce fast plastic slitting machine.
    Perforation device features:
    • - Equipped with an electrostatic removing device to eliminate electrostatic problems.
    • - Equipped with the auto-stop function with the ultrasonic sensor device when material blanking.
    • - Advanced plastic film micro perforation machine equipped with Germany hot pin.

    Available material
    • - PP, CPP, BOPP, HDPE, LDPE and single layer film.

    Optional equipment
    • - LPC.
    • - Paper core cutting machine.
    • - Special hot pin roller (size & distance & type).
  • Model SDH-1200SLP
    Slitting Speed 120 M/Min
    Perforation Speed 60 M/Min
    Product Width 150 - 1200 mm
    Shaft Width 1300 mm
    Material Diameter 600 mm (Max.)
    Porduct Diameter 420 mm (Max.)
    Rewinder Core Diameter 3" ø
    Machine Dimensions (L × W × H) 3.14 × 1.95 × 1.94 m
    Packing Dimensions (L × W × H) 3.34 × 2.15 × 2.14 m
    Net Weight 2600 kg
    Gross Weight 3200 kg
