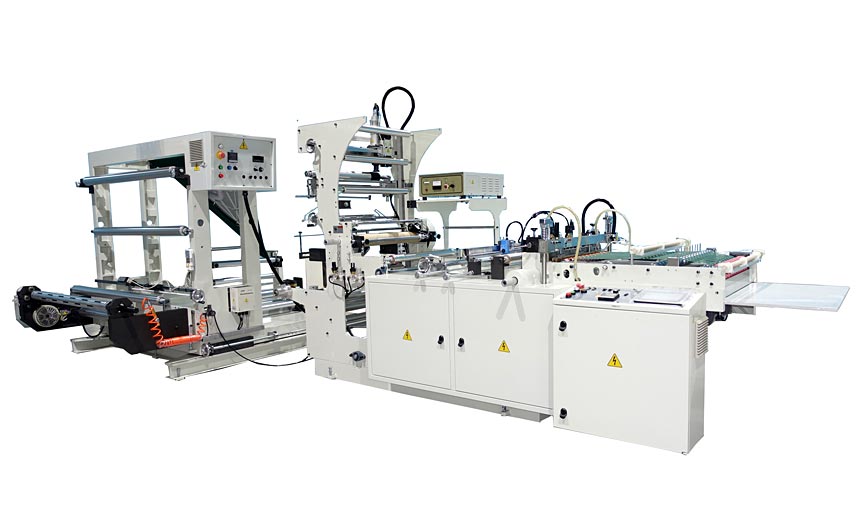

Side Sealing & Cutting Machine SDH-323SF (NC)

High-Speed Automatic Trimming, Side Sealing and Cutting Machine

Inquiry
  • SDH-323SF (NC)
  • Product features
    • - High precision cutting control provided by servo motor.
    • - Auto stop if material runs out.
    • - High accuracy of pivot points tracing provided by high precision photocell sensor.
    • - Auto stop if printing mark out of position.
    • - Imported high speed conveyor belt & electronic parts for long service life.
    • - Convenient to change for various bag shapes.
    • - Ruggedly constructed for maximum stability during high speed.

    Optional equipment
    • - Round hole punching device.
    • - Butterfly (Euro hole) puncher.
    • - Auto-conveyor table.
    • - Edge positioning controller (EPC).
    • - Vertical continuous sealing device.
    • - Bag dividing device.
    • - Glue applicator.
    • - Ultrasonic longitudinal sealing device.
    • - In line folding device.
    • - Auto Hanger insert device.
    • - Courier bag device.
    • - Security bag device.
  • Model SDH-323SF (NC)
    Material OPP/PE, BOPP, PP
    Width of Bag 52mm ~ 600mm Max.
    Length of Bag 760mm Max.
    Speed (Carrier bag) 180 PCS / Min Max. 150 PCS (for glue skip)
    Speed 80~200 PCS/Min Max. Depend on material width& bag type
    Converting Thickness 0.025mm ~ 0.08mm Max.
    Heater 2.2 kW
    Motor 2 HP
    Packing Dimensions
    (L×W×H)
    610 × 197 × 227 cm + 385 × 227 × 225 cm


    *Specifications are subject to change without notice.
    *The machine with servo system the model number will with (NC).
    *All Specification depend on how your side sealing bag design (option equipment).
