Flower Sleeves SDH-800SC-RW
- - Fully automatic stacking conveyor, don't need workers to pick bags up from conveyor unit.
- - Stack held together with automatic hot needles.
- - High accuracy outfeed length controlled by AC servo motor.
- - High accuracy printing controlled by precision photocell.
- - 2 material rolls at unwinder work simultaneously.
- - Quick to change bag shape and size.
- - Clean, elegant and secure sealing.
- - High efficiency, long term operations.
- - Easy to operate, several machines can be operated by one person at the same time.
- - Round hole punch.
- - Multi hole punch.
- - Edge positioning controller (EPC).
- - Up & down register device.
- - Wineglass shaped heat sealing Mold.
- - Bottom sealing device.

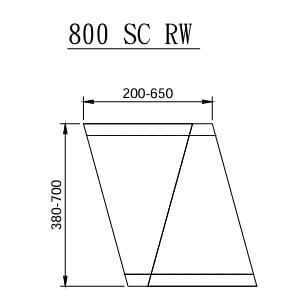

Specifications SDH-800SC-RW W Max. 450 mm A Min. 50 mm L Max. 650 mm Model SDH-800SC-RW Cutter Length 800 mm Cutting Width 50 - 450 mm Speed (cycles/ minute) 40 ~ 70 × (2) Length Accuracy ±2/1000 mm Thickness 0.02 ~ 0.08 mm Motor 2 HP Heater 2.5 kW Power Required 10 kW Machine Dimensions
7.5× 1.5 × 1.8 m Machine Weight 5000 kg Machine Packing
7.6 ×1.6 × 2 m Packing Weight 5700 kg
*Specifications are subject to change without notice.
*For machines with servo system, the model number will contain “NC”.
