3 Types of Polythene Bag Making Machines Testing Tension Limits

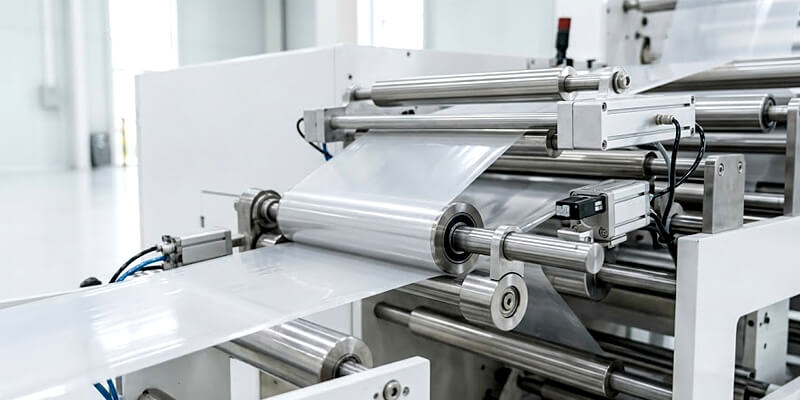

Tension Control is the Most Fundamental and Crucial Technology in All Polythene Bag Making Machines

In flexible packaging converting, precision web handling dictates the threshold between profitable continuous operation and chronic downtime. A modern polythene bag making machine relies fundamentally on tension control to process viscoelastic polymer substrates at elevated line speeds. Polythene, whether low-density polyethylene (LDPE), linear low-density polyethylene (LLDPE), or high-density polyethylene (HDPE), exhibits a low modulus of elasticity and a propensity toward continuous elongation under mechanical stress. If web tension fluctuates by even fractional percentages during feeding, continuous sealing, gusseting, or perforation, the material undergoes non-uniform plastic deformation. This deformation leads to cross-directional neck-in, register wander, gusset misalignment, optical distortion of flexographic printing, and catastrophic sealing failure due to uneven thermal mass distribution at the sealing bar. Leading polythene bag making machine manufacturers understand that tension control is not merely a static mechanical feature, but an active, multi-zone closed-loop control system. Web tension must be dynamically managed across distinct operational zones: unwind, dancer accumulator, processing, indexing, and rewind or stacker discharge. The unwinding phase presents variable reel inertia and continuously changing roll radii, requiring sensitive load cells or dynamic dancer arms coupled with closed-loop vector drives to govern braking torque in real time.

As the substrate advances into continuous or intermittent processing zones, the challenge shifts toward managing rapid acceleration and deceleration cycles. Here, an advanced poly bag making machine utilizes servomotors governed by dynamic feedback loops to isolate the converting zone from upstream mechanical disturbances. Without precise tension management across these transition points, thermal sealing knives introduce structural weakness rather than clean molecular bonding, as stretched polymer chains recoil when cooled under uncontrolled relaxation. Consequently, the core engineering competence of high-tier manufacturers is measured by their ability to maintain uniform tension gradients across the entire web pathway, mitigating mechanical resonance, eliminating web bagginess, and ensuring dimensional stability across varied ambient temperatures and polymer formulations.

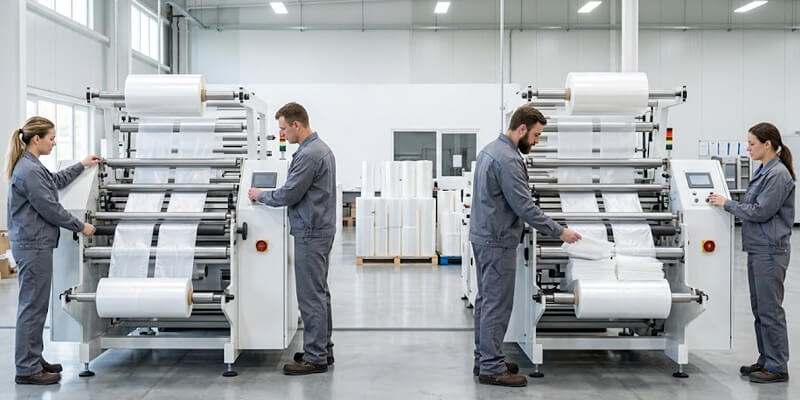

3 Specialized Applications of Polythene Bag Making Machines That Most Heavily Challenge Web Tension Control Systems

Advances in Global Web Handling and Closed-Loop Tension Architectures. In recent years, global converting engineering has achieved significant breakthroughs in tension control architectures for converting equipment. Traditional open-loop friction brakes and passive spring-loaded dancer assemblies have been largely superseded by direct-drive synchronous AC servo systems integrated with multi-axis EtherCAT and PROFINET communication protocols. Modern machinery incorporates ultra-low-friction pneumatic cylinders featuring air-bearing technology within dancer systems, eliminating mechanical stick-slip phenomena that historically caused instantaneous tension spikes during intermittent feeding. High-frequency digital load cells now provide sampling rates in the microsecond range, transmitting real-time web tension data directly to programmable automation controllers running dedicated tension algorithms. These algorithms utilize predictive inertia compensation models that dynamically calculate roll inertia based on current diameter, core dimension, and substrate density. Furthermore, the industry has widely adopted multi-zone electronic line shafting, enabling precise kinematic decoupling between continuous web unwind sections and high-speed start-stop sealing zones. This active decoupling completely suppresses reflective harmonic shockwaves that propagate back into the web during rapid indexing, enabling converters to process ultra-thin down-gauged films, barrier multi-layers, and post-consumer recycled (PCR) blends without sacrificing line speed, seal integrity, or registration accuracy.

1. Shopping Bag Making Machines

The side sealing bag making machine stands as the ultimate multi-role workhorse for commercial, retail, and industrial flexible packaging. Soft loop and patch handle shopping bag production lines subject tension control systems to severe continuous stress due to asymmetric web thickness, complex in-line folding, and high-frequency intermittent indexing. A shopping bag making machine converts tubular or single-wound polythene web into finished carrier bags featuring bottom or side gussets, welded reinforcement patches, and thermal-bonded loop handles. The primary engineering challenge lies in the cross-web tension asymmetry introduced during the in-line application of handle patch materials and continuous gusset forming. When an additional layer of polyethylene reinforcement film is thermally welded onto the handle area, the composite film creates an abrupt cross-directional thickness profile differential across the web. The reinforced zone exhibits higher tensile stiffness compared to the single-layer body film.

When passing through conventional draw rollers, this stiffness differential causes unequal surface traction, leading to diagonal web skew, wrinkles, and track-off across idler rolls. Simultaneously, the integration of bottom gusseting boards forces the flat web into a three-dimensional folded geometry while traveling at speeds exceeding 150 meters per minute. The folding friction varies non-linearly with web speed, ambient humidity, and film coefficient of friction (COF). If the machine cannot isolate tension prior to the intermittent seal-and-cut station, the mechanical shock generated by the reciprocating sealing jaw causes web slackness in the gusseting section. This slack collapses the gusset symmetry, resulting in uneven bag openings and rejected output. To overcome these challenges, machine manufacturers must implement multi-stage motorized nip drives combined with dual-axis load-cell compensators that isolate the continuous folding section from the cyclic indexing pull rolls. The drive algorithms must execute real-time torque compensation to equalize velocity mismatches between the thicker handle zone and the flexible bag body, preventing localized plastic deformation while maintaining edge-guide registration within fractions of a millimeter.

2. Zipper Bag Making Machines

In-line zipper bag manufacturing lines challenge web control through extreme mass imbalances, localized thermal contraction forces, and high profile stiffness differentials across the continuous zipper track. A zipper bag making machine continuously inserts and seals a pre-extruded male-and-female interlocking profile between moving webs of polyethylene substrate before transverse cross-sealing and cutting. The fundamental mechanical difficulty stems from the substantial difference in mass, heat capacity, and flexural rigidity between the solid poly profile and the thin substrate film (often down-gauged to 30 microns or less). As the extruded profile is unwound from independent spools, its tension must be synchronized with the main web. If zipper profile tension exceeds web tension, the finished bag will display severe puckering along the zipper line once cut into individual units; if zipper tension is too low, the profile will buckle inside the continuous ultrasonic or thermal sealing shoes, leading to structural jams and unbonded sections.

Furthermore, the continuous longitudinal sealing process introduces localized thermal expansion followed by rapid cooling contraction. As the heated sealing shoes press the profile into the film, the adjacent unheated film remains cool. This creates steep thermal gradients and localized mechanical strain fields. As the film exits the sealing zone, the hot seam contracts at a higher rate than the surrounding web, inducing camber and longitudinal curl. Machinery manufacturers must engineer specialized differential tension control sections equipped with independent, servo-driven zipper unwind feeders and dynamic thermal relaxation cooling zones. These cooling zones must hold the web under active closed-loop mechanical tension until the recrystallized polymer chain structure stabilizes. Without this precise multi-variable tension synchronization across both the main film path and the secondary profile path, converters encounter severe packaging unflatness, warped side seams, and failure in downstream automated filling machinery.

3. Pre Open Bag Making Machines

The wicket bag making machine represents the apex of high-speed automated converting for hygienic food, hygiene, and automated packaging lines. Pre-opened bag making lines require micro-tension regulation to maintain precision open-mouth apertures, continuous longitudinal perforations, and uniform roll winding without distorting pre-opened bag geometry. A pre-open bag making machine produces continuous rolls of connected bags where one side of each bag is pre-slit or opened during manufacturing, allowing for automated parts loading on downstream packaging lines. Producing this format requires an intricate series of continuous processes: longitudinal slitting of the front web layer, transverse thermal bottom sealing, high-precision transverse perforation between individual bags, and continuous surface or center winding. The slitting of one side of the tubular film destroys the symmetric structural integrity of the web. Once slit, the front layer becomes an unsupported free edge, while the rear layer retains full longitudinal tensile load bearing, causing the web to track unevenly toward the intact side. Controlling web path dynamics under this asymmetric condition requires ultra-precise, low-friction tension loops.

If the web tension is maintained too high during the transverse perforation stage, the tensile load will prematurely tear the micro-perforations before the bag reaches the winder. Conversely, if tension drops below the operating threshold, the open mouth of the bag flutters, catches air currents generated by line speed, and folds back on itself, creating structural creases that weld into subsequent layers during winding. Finally, the rewind station requires calculated taper-tension control algorithms. As the roll diameter builds, core tension must decrease linearly or hyperbolically to prevent internal pressure buildup that would crush the pre-opened openings inside the finished roll. Machine builders solve this through multi-stage non-contact web guiding, precision low-inertia carbon-fiber dancer rollers, and continuous algorithmic tension profiling across the entire slitting, sealing, and winding workflow.

Conclusion: Future Breakthroughs and Machine Evolutions in Polythene Bag Converting

Prospective Breakthroughs in Next-Generation Tension Control Technology

The future of web management in the polythene bag making machine sector will be defined by the convergence of edge computing, non-contact optical sensing, and artificial intelligence-driven predictive control. Current closed-loop architectures rely primarily on physical reaction forces measured by mechanical dancers and load cells, which exhibit a finite mechanical response latency. As converting speeds increase and film thicknesses decrease to meet sustainable packaging metrics, mechanical contact sensing approaches physical performance boundaries. The industry is transitioning toward full-field optical strain measurement systems and high-speed vision arrays capable of monitoring dynamic web elongation in real time using laser Doppler vibrometry and digital image correlation. When coupled with self-optimizing neural network controllers, the poly bag making machine of the next decade will predict and neutralize web tension anomalies before physical strain propagates through the converting section. These systems will autonomously adjust servo acceleration profiles and dancer pneumatic pressures to compensate for roll out-of-roundness, resin inconsistencies, and ambient environmental shifts, eliminating manual operator tuning and reducing setup scrap to near-zero levels.

Emerging Bag Making Models Prioritizing Advanced Tension Upgrades

The transition toward circular packaging models is driving machine development toward dedicated platforms for ultra-thin monomaterial barrier films, water-soluble polymers, and high-percentage post-consumer recycled substrates. Monomaterial structures like machine-direction oriented polyethylene (MDO-PE) and biaxially oriented polyethylene (BO-PE) offer superior recyclability but possess narrower thermal sealing windows and lower shear tolerance than legacy laminates. Converting these substrates requires machines engineered with ultra-sensitive micro-tension zones capable of operating at tension levels below five Newtons across the entire processing path. Concurrently, a new generation of high-speed e-commerce courier plastic bag making machine models is emerging to integrate complex in-line processes, including double-adhesive tape application, tear-strip insertion, continuous punch-out handles, and dual-layer co-extruded heavy-duty mailer production. These multifunctional production lines combine heterogeneous materials with disparate tensile properties within a single high-velocity web path. Consequently, future machine designs will prioritize distributed multi-axis servo architectures, dedicated localized tension traps, and advanced dynamic torque filtering to process challenging sustainable materials at maximum industrial throughput.

Review: Key Insights on Specialized Applications and Tension Engineering

In this comprehensive technical review, we have examined the critical role of closed-loop tension regulation within high-performance flexible packaging machinery. Maintaining strict mechanical tension stability is the governing factor in achieving structural integrity, aesthetic uniformity, and operational efficiency across demanding film converting operations. When web handling systems fail to compensate for localized mass distributions, dynamic velocity steps, or asymmetric cross-sections, finished goods exhibit critical defects that compromise downstream usability.

• Shopping Bag Making Machines:
  The integration of thick handle reinforcement patches alongside deep mechanical gusset folds creates severe cross-web tensile and thickness asymmetries, requiring active multi-stage servo isolation to prevent web skew and registration wander.
• Zipper Bag Making Machines:
  The large mass differential and thermal contraction mismatch between the rigid extruded zipper profile and ultra-thin polyethylene web necessitate independent dual-path tension synchronization and active thermal cooling stabilization zones.
• Pre Open Bag Making Machines:
  Slitting one layer of the tubular web destroys structural symmetry and leaves delicate open-mouth apertures susceptible to web flutter, requiring micro-tension management and continuous taper-torque winding control.

Mastering these engineering challenges allows equipment builders to deliver robust, high-yield manufacturing systems capable of processing advanced polymer blends and complex bag profiles. As the global flexible packaging market transitions toward sustainability, the capability of machine platforms to maintain precision tension control across non-uniform substrates remains the definitive benchmark of mechanical and electrical engineering excellence in the converting sector.
